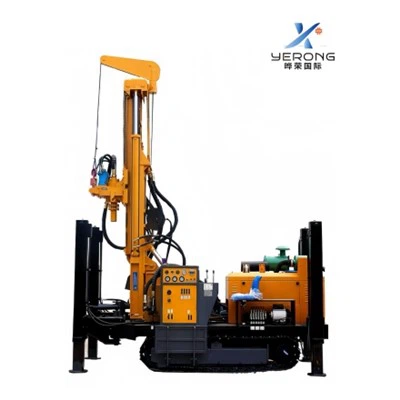

Multi Functional Water Well Drilling Rig(YR-280) can easily handle a variety of complex hydrogeological conditions, including deep aquifers, meeting a wider range of water needs, such as agricultural irrigation and factory and mine water supply. The tracked chassis offers excellent off-road performance and flexible maneuverability, easily navigating rugged terrains such as mountains and hills. Furthermore, this equipment is equipped with a high-torque power unit and an advanced hydraulic system, resulting in powerful drilling force, high efficiency, and stable and reliable operation, making it an efficient and versatile choice for medium- to deep-hole drilling operations.
Product Introduction
Multi Functional Water Well Drilling Rig adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.In terms of the engine, we have adopted the famous brand Yuchai75Kw turbocharged version,it can also customize other brand of engine depend on you.
Detail
Multi Functional Water Well Drilling Rig(YR-280) specification
|
YR-280 |
|||
|
(T)The weight |
7.6 |
(mm)Drill pipe diameter |
Φ76 Φ89 |
|
(mm)The hole diameter |
140-305 |
(m)Drill pipe length |
1.5m 2.0m 3.0m |
|
(m)Drilling depth |
280 |
(T)Rig lifting force |
17 |
|
(m)One-time advance length |
6.6 |
(m/min)Rapid rise speed |
25 |
|
(km/h)Walking speed |
2.5 |
(m/min)Fast feeding speed |
30 |
|
(Max.)Climbing angles |
30 |
(m)Width of loading |
2.7 |
|
(kw)Equipped capacitor |
75 |
(T)Hoisting force of winch |
2 |
|
(MPA)Using air pressure |
1.7-3.0 |
(N.m)Swing torque |
4500-6000 |
|
(m^3/min)Air consumption |
17-31 |
(mm)Dimension |
5900*1850*2360 |
|
(rpm)Swing speed |
40-70 |
Equipped with hammer |
Medium and high wind pressure series |
|
(m/h)The penetration efficiency |
15-35 |
(m)High leg stroke |
1.4 |
|
The engine brand |
Yuchai engine |
||
Our factory & quipment
About Us
FAQ
Q: What is the maximum drilling/coring depth?
A: Currently 800m, but can be customized for higher requirements.
Q: What power source does the drilling rig use (diesel, electric, or hybrid)? What is the energy consumption?
A: Primarily diesel, but other power sources are also available, mainly depending on customer needs.
Q: What brands are used for core components (such as engines and hydraulic systems)? Can they be customized?
A: All parts use internationally renowned brands, such as Yuchai and Cummins engines. These parts can be customized according to customer needs.
Q: What is the deposit percentage?
A:30% T/T as deposit, full balance before delivery
Q: Can you assist with customs clearance documents (such as certificate of origin, commercial invoice, packing list)?
A: Yes
Q: Do you provide operation training, installation instructions, or maintenance manuals (in English)?
A: Yes
Q: Can you customize solutions according to our specific project requirements (such as special bore diameters or depths)?
A: Yes.
Q: What is the operating pressure (PSI/Bar) and discharge volume (CFM) range of the air compressor?
A: Operating pressure 5-40 (PSI/Bar), discharge volume 8-35 (CFM). If you have other requirements, we can also customize an air compressor to meet your needs.
Q: Is there a minimum order quantity (MOQ) requirement?
A: 1 unit.
